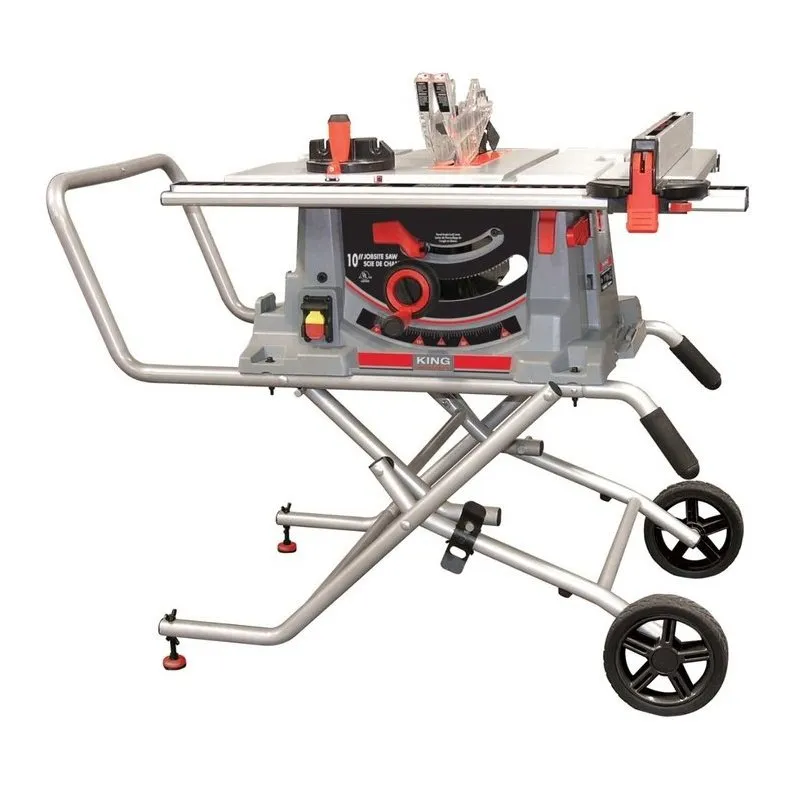

Product Features
- Powerful 15 Amp. heavy-duty motor with reset
- Large 22-1/4" x 28-3/4" cast aluminum table with extendable‚ rails and table allowing up to 25"‚ rip capacity to the‚ right of the blade
- Electromechanical safety switch with line voltage interruption
- Folding stand with large 8" wheels for portability
- Low profile fence extension for cutting thin and narrow stock
- All in one height/bevel adjusting handwheel with blade‚ height lock and micro bevel angle adjustment
- On-board storage secures rip fence, miter gauge, blade‚ guard, anti-kickback fingers, extra blades, push stick and‚ blade wrenches during transport
- Blade tilts 0‚° to 45‚° with detents for versatile angle cutting
- Table has writable surface insert to mark sides of blade‚ for cut alignment
- 2-1/2" dust port for connection to standard shop vacuum
- Comes with 10" x 40 tooth general purpose blade,‚ rip fence, miter gauge, Standard and Dado table inserts, push stick and wrenches
- Double insulated
KC-5100NS Spec‚
- Blade Diameter: 10"
- Depth of Cut at 45‚°: 2-1/2"
- Depth of Cut at 90‚°: 3-1/2"
- Table Size: 28-3/4" x 39-1/2" x 22-1/4"
- Diameter of Arbor: 5/8"
- Arbor Speed: 4,400 RPM
- Motor: 15 Amp
- Voltage: 120V, 1 phase, 60Hz‚
- Assembled Dimensions (LxWxH) / Weight: 57-3/4" x 29-1/2" x 41-3/4" / 70lbs‚
- Packaging Dimensions (LxWxH) / Weight: 39-3/4" x 31-1/8" x 17" / 75lbs‚
