Diamond Products
CC548MHXL2 4.8HP Honda Masonry Saw
DP03732
FEATURES:
- Stay level blade guard
- Removable cutting head
- Leg kit standard-folding stand optional
- Side carrying handles
- Replaceable conveyor cart rails
- Includes water pump
- Vulcanized rubber coated material slide cart
- Open throat cutting
- Easy and safe access to depth control lock
- Open back cutting allows longer material to be cut
- Heavy duty frame design help resist damage to saw body
- Reinforced slide rails keep the cart running smoothly
- Simple yet strong design allows easy maintenance
- Sealed drain hole on the bottom of the tray allows quick clean up
SPECIFICATIONS:
| Maximum Depth of Cut: | 5 |
|---|---|
| Blade Shaft Diameter: | 7/8 |
| Arbor Diameter: | 1 |
| Blade Shaft Bearings: | Flange block ball bearings |
| Blade Shaft Drive: | 2 belt |
| Blade Mounting: | Right (electric), Left (gas) |
| Blade Raise/Lower: | Counterbalanced, spring tensioned head pivots on two 7/8 flange block bearings |
| Blade Coolant: | Dual spray tubes, pump fed (electric models), pump from tray (gas models) |
| Air Filter: | 3-stage cyclone (gas models) |
| Fuel Capacity: | 1 gallon (gas models) |
| High Temp Shut-off: | Included (electric models) |

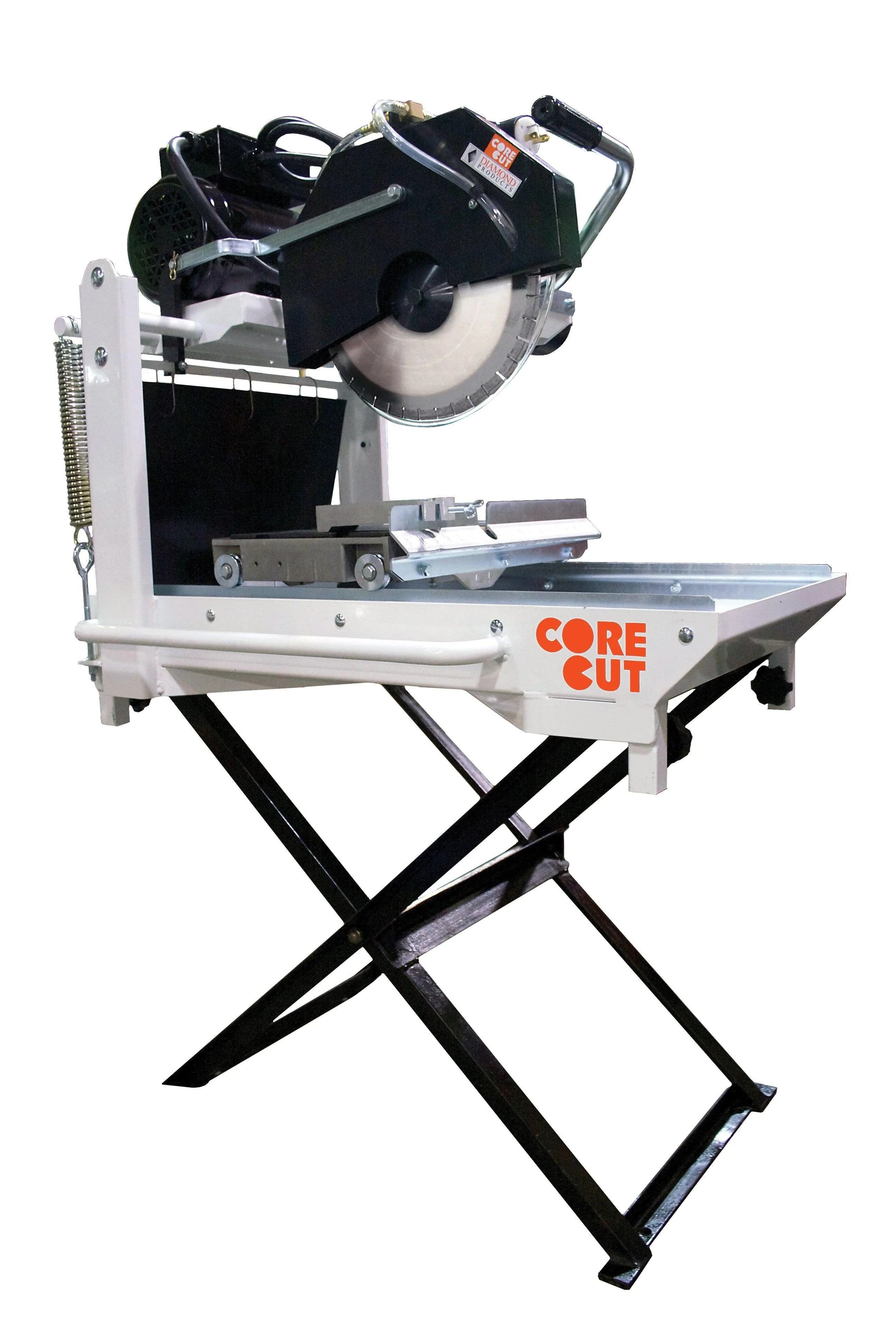

Electric Model shown for reference with optional folding stand Part# 6030042 Cat# 46893
Shipping/Dimensional Weight:195.00 lbs
