Einhell Germany AG
A centre for ideas, quality and innovation

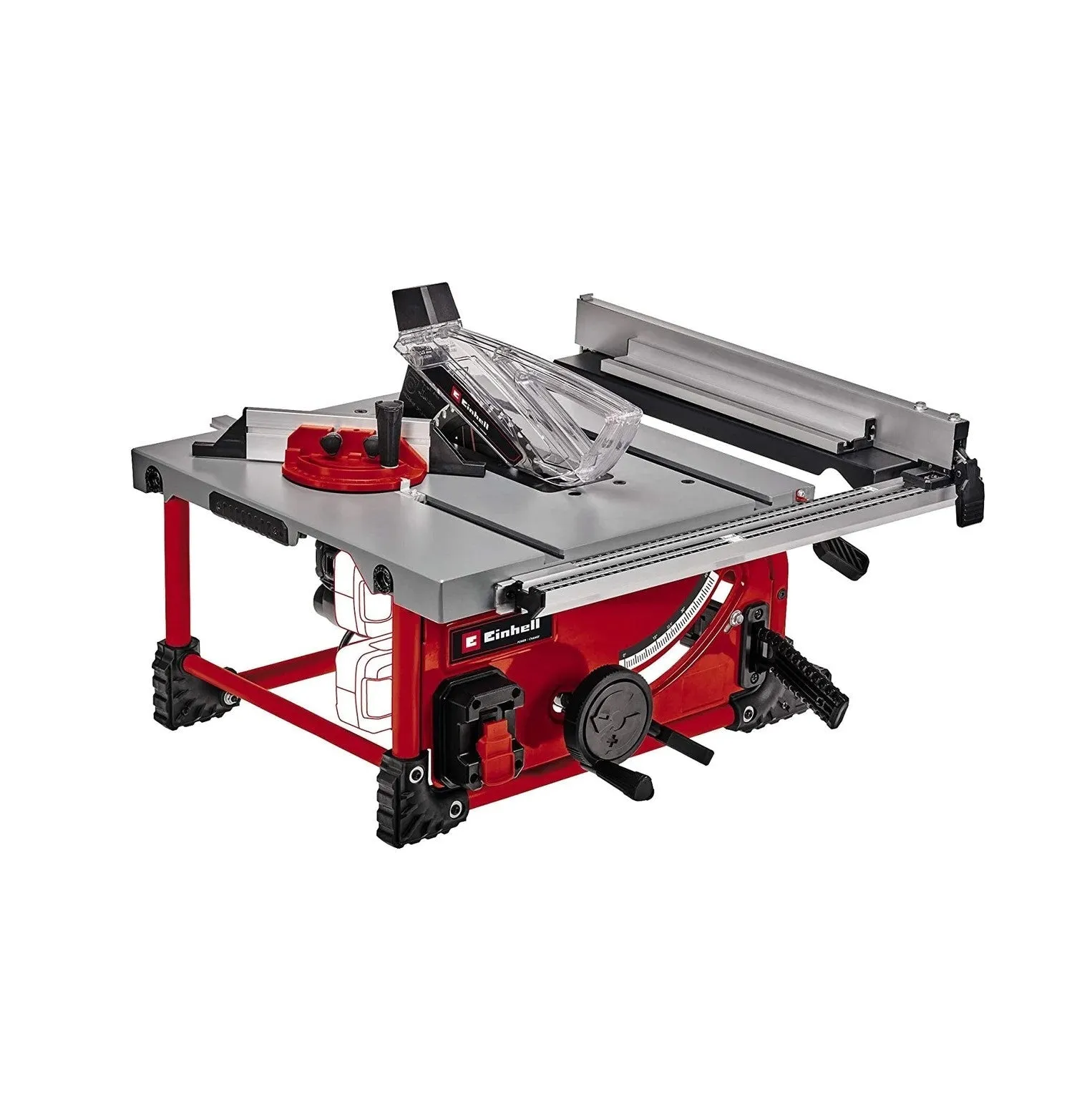

The Einhell bench-type circular saw is an ideal basic tool for anyone performing woodworking jobs. The bench-type circular saw is designed for sizing and cross-cutting work on softwood and hardwood. The sturdy aluminium table is light and torsion-resistant and has perfect sliding properties. For wider workpieces the table has pull-out width extensions on the right-hand side. As a small and compact tool the bench-type circular saw can also be integrated in small worksheds or hobby rooms and is ideal for mobile use too. The soft start function protects both the motor and the gear unit against false starts.

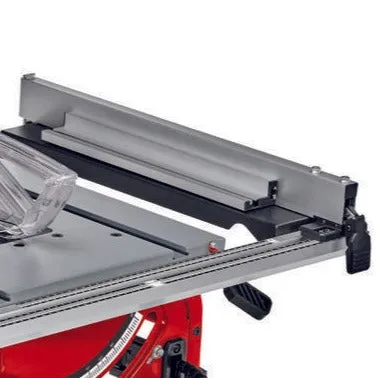

The infinitely height adjustable saw blade ensures safe operation. The ultra-sturdy parallel stop ensures exact longitudinal cuts. The product is supplied complete with an angle stop for precise miter cuts from -60 to 60° degrees. The saw blade can be tilted continuously up to 45° to the left for miter cuts. Also included is a high-grade carbide saw blade which was specially developed for cordless saws. For a clean workplace free of dust and sawdust there are extractor connections on the housing and saw blade guard. Holders are provided on the housing for stowing away all the attachments on the equipment.
- Supplied without battery and charger (available separately)
Specifications
| No-load speed | 3800rpm |
| Saw Blade | 210mm x 30mm |
| Number of saw teeth | 40 |
| Swiveling range of saw blade | 45° |
| Max. cutting height at 90° | 70mm |
| Max. cutting height at 45° | 45mm |
| Size of working table | 480mm x 467mm |
| Size of extension table right | 480mm x 70mm |
| Extension table telescopic | 370mm |

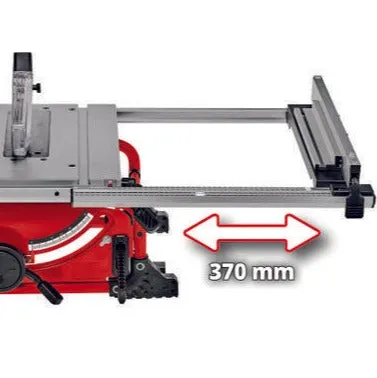

Also for large workpieces
- The extendable table extension can be extended to the right by 370mm and thus creates more space for large workpieces.

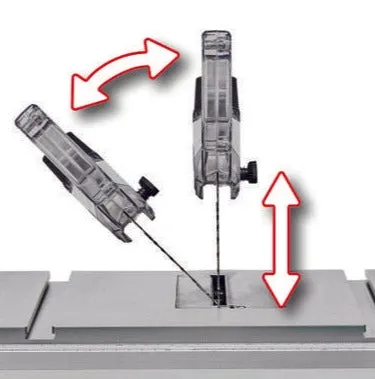

2-in-1 saw blade adjustment
- With a crank attached to the housing, both the height and the angle of the saw blade can be easily and individually adjusted.

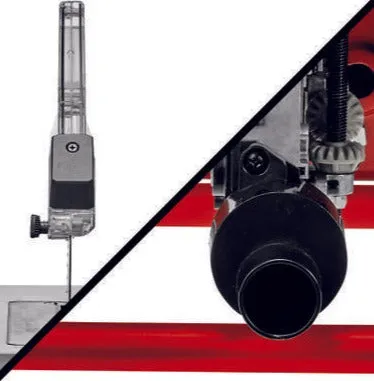

Practical dust extraction
- The dust extraction on the housing and on the transparent saw blade cover ensure a clean workplace during sawing.

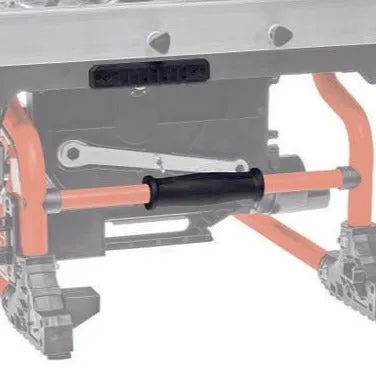

Mobile use at any time
- The lightweight and compact design with integrated handle makes the table saw easy to store and is ideal for mobile use
